High Speed Full Automatic Three Side Sealing Bag Making Machine For
Standing Up bag
Quick Detail:
Place of Origin: | China |
Brand Name: | SANBI |
Certification: | CE, ISO ,SGS |
Description:
It adopts Two-servo with the third traction mechanism to make
discharging material as well as the
material on the bracket with consistent speed drawn forward
successively by the third traction motor
to ensure discharging material and its tension steady. The
automatic feeding mechanism can reduce
the labor strength. The structure of whole machine is sound with
exquisite equipment as well as
good looking appearance. It is ideal equipment at home with
moderate speed, lower noise, good function.
Main Technical Parameters
Function: | 3 side sealing, middle sealing .Standing Up bag |
Main Electric Device: | It is mainly composed of traction two-servo motor, working control computer produced in Taiwan, its main drive as AC motor equipped with frequency converter as well as temperature control 18 routes. |
Suitable Material: | BOPP, COPP, PET, PVC, Nylon etc. plastic compound film, multiple-layer extruding film, aluminum plating compound film, pure Al foil compound film. |
Max. Speed: | 160t/min. |
Max. Discharging Speed: | ≤36m/min. (depending on material and specifications) |
Bag dimensions: | length: 400mm, if it is longer than 400mm, it must multiply to
finish. ( max. times: 6) Max. width: 500mm |
Positioning Precision: | ≤±0.5mm |
Max. Dimensions of reeling: | ￠600 ×1050mm (diameter × width ) |
Quantity of Heating Sealing Knives: | Vertical sealing adopts 4 units with heating up and down, cooling up and down. Horizontal sealing adopts 3 units heating up and down, 2 units with cooling up and down. |
Qty of Temperature Electric Heating: | 18 pcs. |
Temperature Scopes: | 0~300 ℃ |
Power of the Whole Machine: | 45KW (the actual power when operating motor, is 30 KW, when keeping temperature, its power is 20KW.) |
Overall Dimensions: | 11000×2000×1870mm (L×W×H ) |
Net Weight of the Whole Machine: | 5000 kgs. |
Color: | green cover, black body. (It can be changed according to users.) Model of Control System: SSF-IV Model compound high speed bag-making control system. |
Applications:
- food packaging:cakes,candies,roasted seeds and nuts,
- biscuits, milk powder, salt,tea, bag etc.;
- bacteria bags,convenient bags,storage bags;
- side sealing bag, stand up bag
Competitive Advantage:
a.The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c.Machines with quality guarantee for one year, life-long
maintenance.
d.Created honors : The national igh tech-Enterprises, The national
torch-planning project commitments to corporate. Famouse trademarks
in WENZHOU, Ten pcs provincial new products etc
e.Professional development group continuously improves and upgrades
new products and new technologies .
f.Undertake various non-standard machinery, solve the customers'
special requirements.

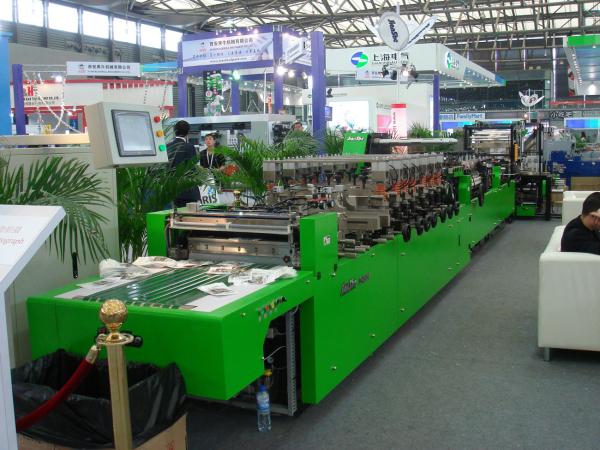

High Speed Full Automatic Three side Sealing Plastic Bag Making
Machine
