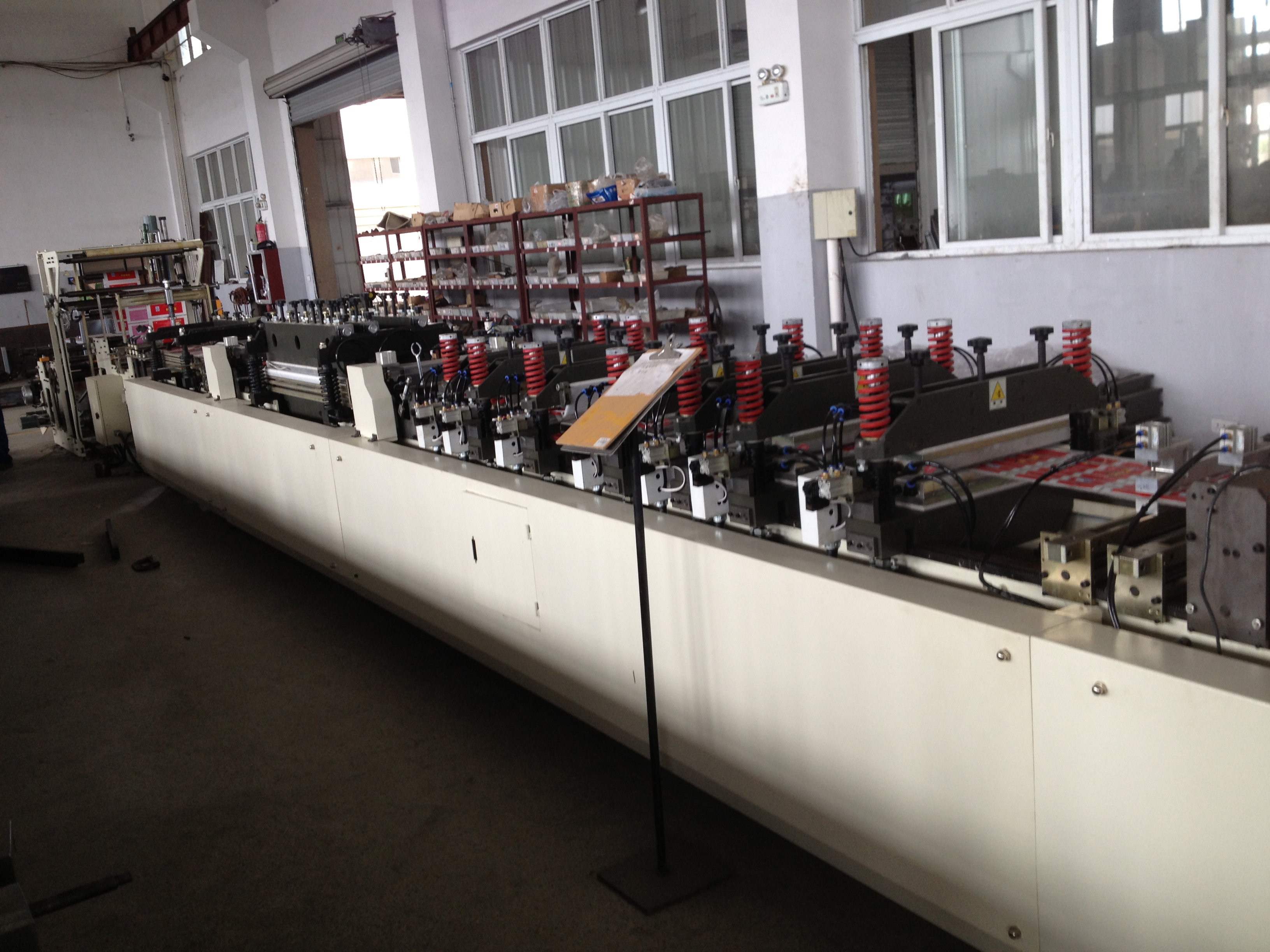

    High Speed BOPP PET Plastic Bag Making Machine Three Side Middle Sealing


    High Speed Full Automatic Three Side Sealing Plastic Bag Making Machine


    Quick Detail:


    Place of Origin:

    China

    Brand Name:

    SANBI

    Certification:

    CE, ISO ,SGS


    Description:


    It adopts Two-servo with the third traction mechanism to make discharging material as well as the

    material on the bracket with consistent speed drawn forward successively by the third traction motor

    to ensure discharging material and its tension steady. The automatic feeding mechanism can

    reduce the labor strength. The structure of whole machine is sound with exquisite equipment as well

    as good-looking appearance. It is ideal equipment at home with moderate speed, lower noise, good

    function.


    Main Technical Parameters


    Function:

    3-side sealing, middle sealing .

    Main Electric Device:

    It is mainly composed of traction two-servo motor,

    working control computer produced in Taiwan,

    its main drive as AC motor equipped with frequency converter

    as well as temperature control 18 routes.

    Suitable Material:

    BOPP, COPP, PET, PVC, Nylon etc. plastic compound film,

    multiple layer extruding film, aluminum plating compound film,

    pure Al foil compound film.

    Max. Speed:

    160t/min.

    Max. Discharging Speed:

    ≤36m/min. (depending on material and specifications)

    Bag-dimensions:

    length: 400mm, if it is longer than 400mm, it must multiply to finish.

    ( max. times: 6)

    Max. width: 500mm

    Positioning Precision:

    ≤±0.5mm

    Max. Dimensions of reeling:

    ¢600 ×1050mm (diameter×width )

    Quantity of Heating Sealing Knives:

    Vertical sealing adopts 4 units with heating up and down,

    cooling up and down. Horizontal sealing adopts 3 units heating up

    and down, 2 units with cooling up and down.

    Qty of Temperature Electric Heating:

    18 pcs.

    Temperature Scopes:

    0~300 ℃

    Power of the Whole Machine:

    45KW (the actual power when operating motor, is 30 KW,

    when keeping temperature, its power is 20KW.)

    Overall Dimensions:

    11000×2000×1870mm (L×W×H )

    Net Weight of the Whole Machine:

    5000 kgs.

    Color:

    green cover, black body. (It can be changed according to users.)

    Model of Control System: SSF-IV Model compound high speed

    bag-making control system.


    Applications:

    - food packaging:cakes,candies,roasted seeds and nuts,

    - biscuits, milk powder, salt,tea, bag etc.;

    - bacteria bags,convenient bags,storage bags;

    - side sealing bag, stand up bag

    Competitive Advantage:

    a.The twenty-seven years experence to manufacture this machine

    b. 30years professional engineers service in many countries,

    c.Machines with quality guarantee for one year, life-long maintenance.

    d.Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

    e.Professional development group continuously improves and upgrades new products and new technologies .

    f.Undertake various non-standard machinery, solve the customers' special requirements.


    High Speed Full Automatic Three side Sealing Plastic Bag Making Machine
