Quick Detail:

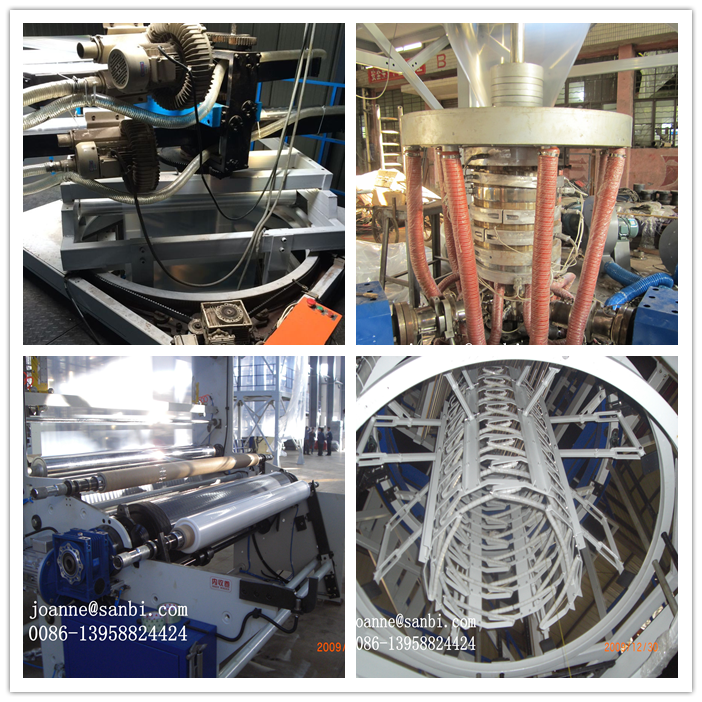

3 Layers Co-extrusion Film Blowing Machine
1) IBC, 360degree horizontal
2) Automatic double rewinder
3) Up and down bubble fixer
4) auto loader
Condition | New |
Application | Film |
Plastic Processed | PE |
Blow Moulding Type | Extrusion Blow Moulding |
Automatic | Yes |
Place of Origin | Zhejiang, China (Mainland) |
Brand Name | SANBI |
Model Number | 3SJ55-GS1300-1800 |
Material | LDPE,HDPE,MLLDPE, EVA etc. |
Layers | 3-5layers |
Extusion | Co-extrusion |
haul-off | rotary traction system |
Die head | IBC System |
Winder | Auto winders |
Certificate | CE,ISO |
Description:
Haul-off unit is oscillating reverse by horizontal±180..Its
structure is reasonable, so it economizes lots of energy and it is
easy to maintain. By means of the reversing haul-off unit, films
can be produced without requiring rotating die head, so the
structure of die head is simplified. Reversing haul-off unit
eliminates many problems of ling channel for the rotating die head,
difficult sealing for the melt, compound leakage being easy,
unsymmetrical heating, difficult maintenance, macro film tolerance
and so on Haul-off unit reduces the degree of difficulty for recipe
of the multi-layer co-extruded product and production technical
processing control, if the blowing film line is with IBC (Internal
Bubble cooling system), it can produce film with the quality of
more high-grade transparency and better all-round performance. The
produced film is very flat, reel is high-quality by the use of
reversing haul-off units. The film can meet the demand for the
high-speed printing.
Applications:
The lines are designed developed by our corporation according to
market need, they reach the advanced levels in the 90s, come up
with analogous lines in home. It is optimum designed on the trounds
of preference of analogous lines in foreign and home. The lines can
be blown cotinuous 800/1500mm in fold width 0.08mm in the thickness
packaging films, film has good insulation, for instance holding
temperature, anti-humid, anti-freeze, anti-rain, anti-rost,
insulation oxygen, oil resistive, and so used for light and
heavy-duty packaging, for example fresh fruits, meats, salt
vegetables, fresh milk, drink and so on.
Specifications:
Type | 3SJ55-GS1300 | 3SJ60-GS1500 | 3SJ65-GS1700 | 3SJ70-GS2200 |
Diameter of screw | 1200 | 1400 | 1600 |
|
L/D | 3 | 3 | 3 | 3 |
Film thickness (mm) | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 | 0.02-0.12 |
Max. output (kg/h) | 120 | 150 | 180 | 240 |
Raw material | MLLDPELLDPELDPEEVA |
Screw diameter (mm) | 55×3 | 60×3 | 65×3 | 70×3 |
Screw L/D ratio L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Screw Max. rotation Speed (r/min) | 15-100 | 15-100 | 15-100 | 15-100 |
Extruder driving power (kw) | 22×3 | 30×3 | 37×3 | 45×3 |
The way of esteem changing of extruder |
| Manual twin-station changing screen quickly |
Die structure | IBC | With or without IBC(Internal Bubble Cooling system) |
Air-ring structure |
| Dual tuyere |
Reversting haul-off system | Film turning mode |
| Horizontal |
Angle of reversing | ±180 | ±180 |
Take-off Wide-up speed (m/min) | 45 | 45 | 45 | 45 |
Total Power (kw) | 85 | 110 | 140 | 220 |
Overall dimensions (mm) | 1000×6000×9000 | 1000×600×9500 | 1100×7000×10000 | 1300×7000×12000 |
Weight (T) | 15 | 20 | 25 | 30 |
| | | | | |
