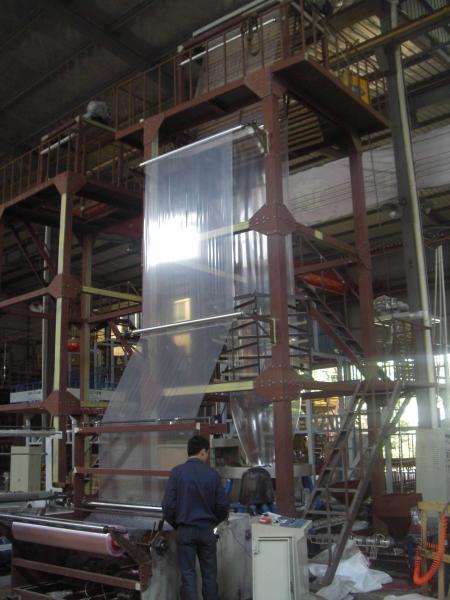

    150Kw PE Film Blowing Machine , Extrusion Blow Moulding Equipment

    Ask Lasest Price
    Brand Name : SANBI
    Certification : CE, ISO9001
    Model Number : SJ-C90
    Price : 36000
    Delivery Time : within 30 workdays
    Payment Terms : T/T, L/C
    Supply Ability : 30 sets of month
    • Product Details
    • Company Profile

    150Kw PE Film Blowing Machine , Extrusion Blow Moulding Equipment

    Quick Detail:

    1. Material: PE
    2. Feature :agricultural packing film
    3. high output machine with most competitive price


    Condition

    New

    Application

    Film

    Plastic Processed

    PE

    Blow Moulding Type

    Extrusion Blow Moulding

    Automatic

    Yes

    Place of Origin

    Zhejiang, China (Mainland)

    Brand Name

    SANBI

    Model Number

    SJ-C75/90/105/120

    Voltage

    380V / as request

    Power(W)

    70/85/120/150KW

    Dimension(L*W*H)

    10200*4200*12000mm

    Weight

    5.5/8/10/12T

    Certification

    ISO 9000 ,CE

    Warranty

    1 Year

    After-sales Service Provided

    Engineers available to service machinery overseas

    Certificate

    CE,ISO 9000

    Material

    HDPE,LDPE ,LLDPE

    Product Type

    Pe Film

    Processing Type

    Extruding Machine

    quality

    top quality

    service

    high quality service

    Plastic Film Blowing Machine

    Plastic Film Blowing Machine

    type

    Film Blowing Machine


    Description:


    It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.

    The screw and material barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.



    Applications:


    Its extruder, cylinder and screw are made of quality alloy steelwhich have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.


    Specifications:


    Model

    SJ-C75

    SJ-C90

    SJ-C105

    SJ-C120

    Diameter of Screw(mm)

    75

    90

    105

    120

    L/D Ratio of Screw

    28:1

    28:1

    28:1

    28:1

    Screw Speed(r/min)

    10-100

    10-100

    10-100

    10-100

    Power of Main Motor(kw)

    37

    45

    55-70

    75-95

    Max. Output(kg/h)

    120

    160

    190

    220

    Max. Lay-flat Width of Film(mm)

    1500

    2000

    2200

    2500

    Thickness of Film(mm)

    0.01-0.10

    0.01-0.10

    0.01-0.10

    0.01-0.10

    Total Power(kw)

    46

    60

    78

    95

    Weight(T)

    4

    8

    10

    12

    Overall Dimension(mm)

    5200*2800*6000

    6200*3400*8000

    6200*4000*9000

    6800*4500*10000



    Competitive Advantage:



    Quality 150Kw PE Film Blowing Machine , Extrusion Blow Moulding Equipment for sale
