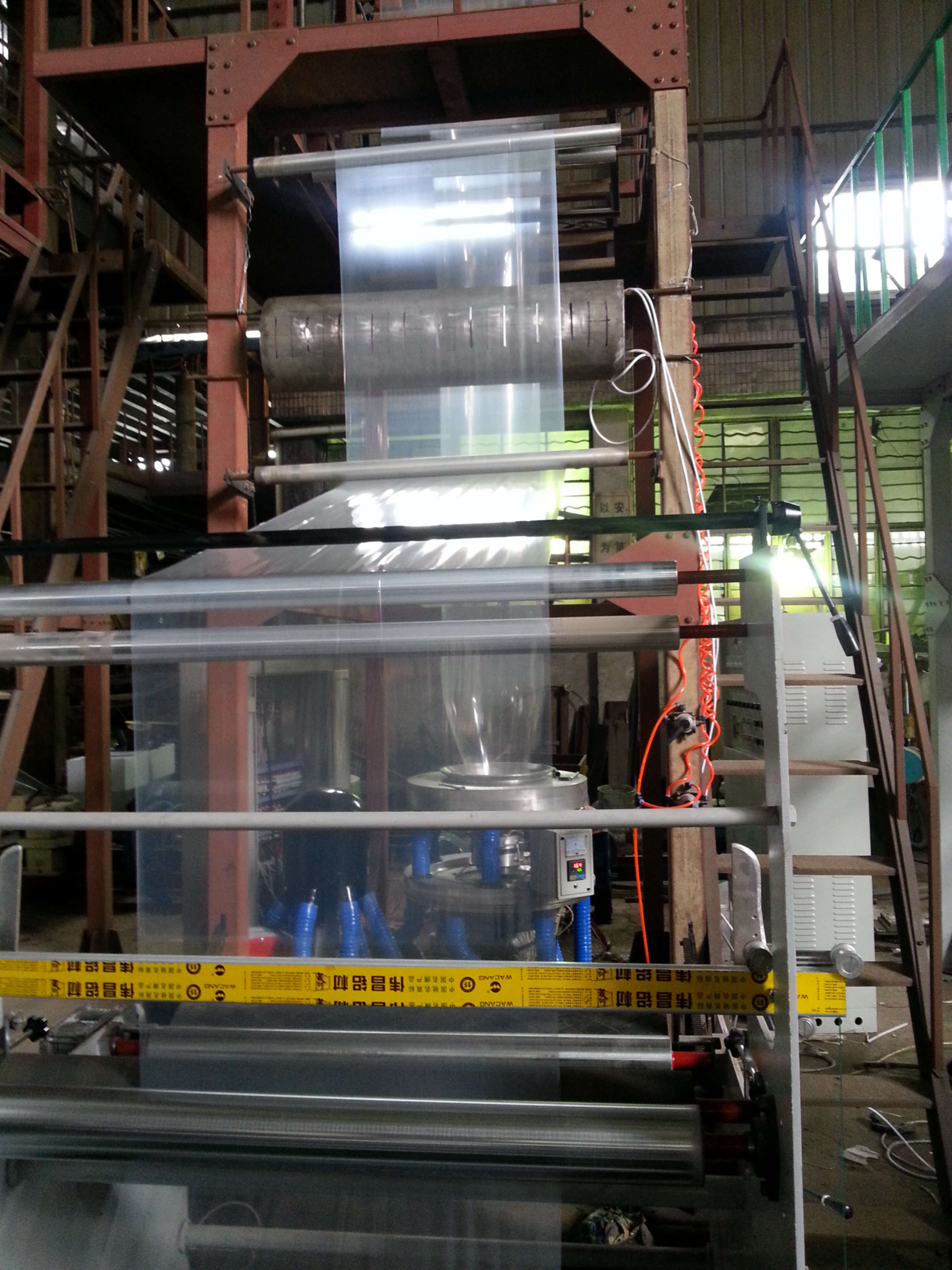

    Durable Blown Film Machinery Blow Film Extruder With Rotary Die

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-A 50、55、65、70
    Certification : CE,ISO9001:2008,SGS
    Supply Ability : 30 set/month
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

    Durable Blown Film Machinery Blow Film Extruder With Rotary Die

    Durable Blown Film Machinery Blow Film Extruder With Rotary Die



    Description:

    Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.

    it is sound in hardness, durable in corrosion resistance.

    The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.

    It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE).

    It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.



    Durable Blown Film Machinery Blow Film Extruder With Rotary Die


    OPTIONAL EQUIPMENT:

    1) AUTO LOADER
    2) CAST ALUM HEATER
    3) AIR SHAFT
    4) DIE ROTARY DEVICE
    5) BOUBLE SIDES WINDER
    6) UP AND DOWN
    7) PNEUMATIC DEVICE



    Main Technical Parameter:

    ModelA50A55A65A65-1
    Diameter of screwφ50φ55φ65φ65
    Rcduced diameter of film(mm)100-600200-800300-1000400-1200
    Single-face Thickness of film(mm)0.01-0.100.01-0.100.01-0.100.01-0.10

    Max.Extrusion(Kg/h)

    35

    50

    65

    80

    L/D28:128:128:128:1
    Power of main moto(kw)7.5-1111-1518.5-2222
    Power of Tracion main moto(kw)1.11.11.51.5
    Heating Power(kw)11131921

    Outline diameter(L x W x H) (mm)

    4800 x 1900 x 35005500 x 2100 x 38006500 x 2300 x 42006500 x 2500 x 4800
    Weight(T)1.5T2T2.3T2.6T
