    Noiseless Full Automatic Blown Film Extrusion Machine 380v 50hz

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-50,55,65
    Certification : CE, ISO9001
    Price : 15000-22000
    Payment Terms : T/T, L/C
    Supply Ability : 30 SEST ONE MONTH
    Delivery Time : within 30 workdays
    • Product Details
    • Company Profile

    Noiseless Full Automatic Blown Film Extrusion Machine 380v 50hz

    Noiseless Full Automatic Blown Film Extrusion Machine 380v 50hz


    Quick Detail:


    High-speed Blown Film Machine


    1. HDPE,LDPE,LLDPE film or shrink film
    2. rotary Die, automatic rewinder
    3. max.speed 100m/min


    Condition

    New

    Application

    Film

    Plastic Processed

    PE

    Blow Moulding Type

    Extrusion Blow Moulding

    Automatic

    semi-automatic

    Place of Origin

    Zhejiang, China (Mainland)

    Brand Name

    sanbi

    Model Number

    SJ-50/55/65/65-1

    Voltage

    380V,50HZ

    Power(W)

    30KW-

    Dimension(L*W*H)

    6000X3000X4800mm-

    Weight

    3T-

    Certification

    CE,ISO9001:2000,SGS

    Warranty

    1 YEAR

    After-sales Service Provided

    Engineers available to service machinery overseas

    Feature

    high speed ,high output

    screw

    high speed alloy material

    winder

    automatic roller changer

    certificate

    CE,ISO9001:2000,SGS


    Description:


    Its extruder, cylinder and screw are made of quality alloy steelwhich have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.


    OPTIONAL EQUIPMENT:



    1) AUTO LOAD
    2) AIR COMPRESSOR
    3) SPECIAL DIE
    4) DIE ROTARY DEVICE
    5) BOUBLE SIDES WINDER
    6) UP AND DOWN


    Applications:


    It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.


    Specifications:


    Model

    SJ-50

    SJ-55

    SJ-65

    Diameter of screw

    φ50

    φ55

    φ60

    Rcduced diameter of film(mm)

    100-600

    200-800

    300-1000

    Single-face Thickness of film(mm)

    0.01-0.1

    0.01-0.1

    0.01-0.1

    Max.Extrusion(Kg/h)

    55

    75

    100

    L/D

    30:1

    30:1

    30:1

    Power of main moto(kw)

    15

    22

    37

    Power of Tracion main moto(kw)

    1.5

    1.5

    1.5

    Max. Line Speed (m/min)

    100

    100

    100

    Heating Power(kw)

    11

    13

    19

    Outline diameter(L x W x H) (mm)

    6000 x 1600 x 4000

    6500 x 2200 x 4700

    7000 x 2300 x 5250

    Weight(T)

    2.0T

    2.5T

    3.5T


    Competitive Advantage:

    Automatic cutting and change roller ,imporoved capacity and speed

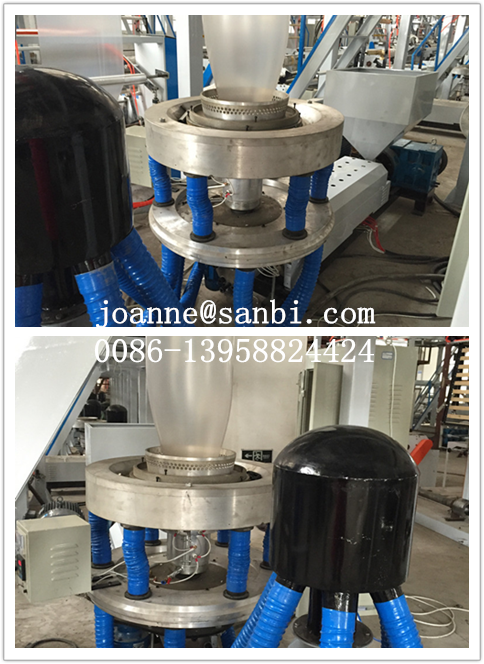

    rotary head: make film thickness even

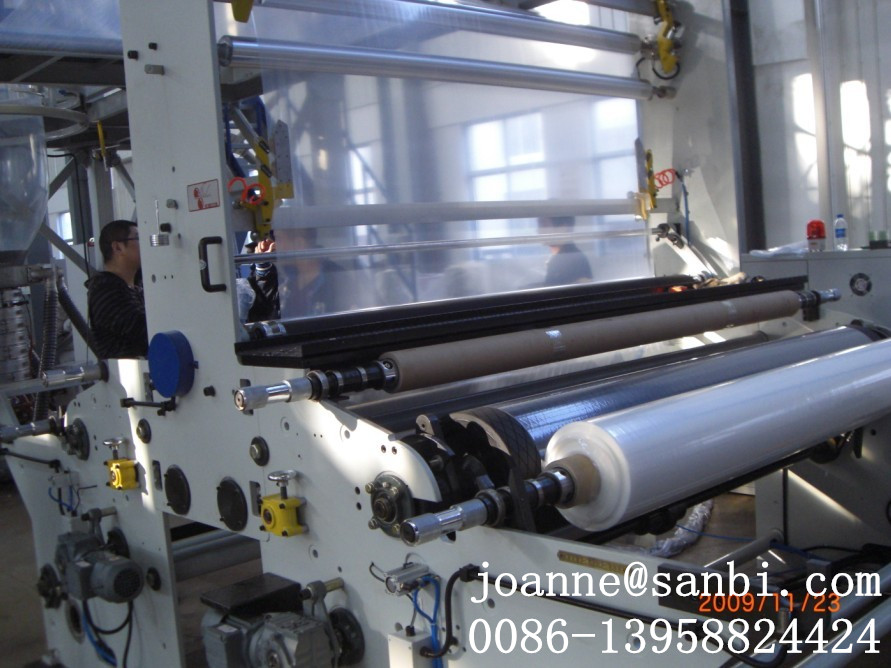

    it is back to back full automatmic rewinder


    PACKING AND DELIVERY:


    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
