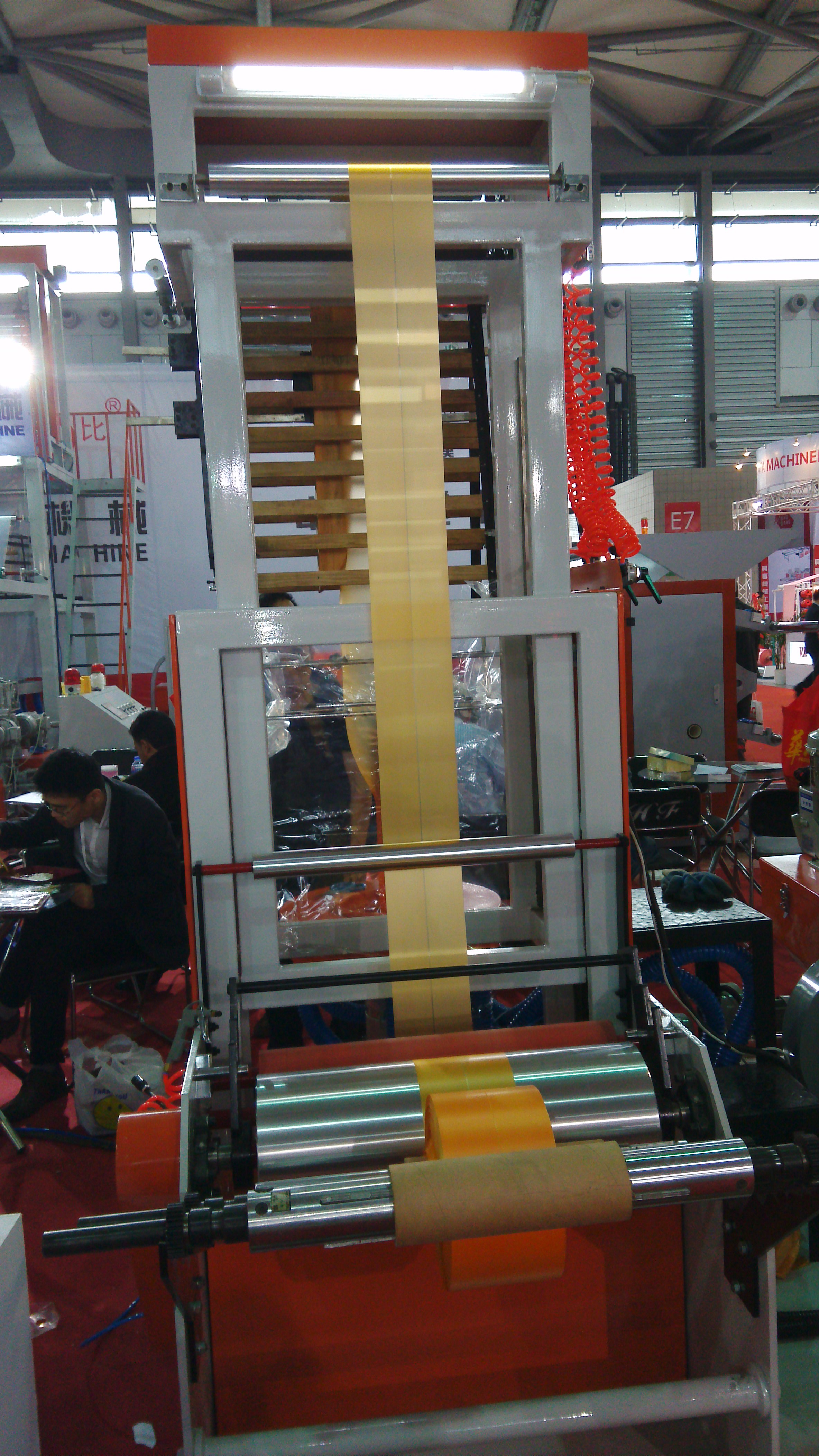

    Plastic Roll PE Film Blowing Machine For Garbage Bag , Blown Film Equipment

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-D50/55
    Certification : CE , ISO9001
    Price : (5000USD - 10000 USD) / SET
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 30 Set/Month
    Delivery Time : around 30 work days
    • Product Details
    • Company Profile

    Plastic Roll PE Film Blowing Machine For Garbage Bag , Blown Film Equipment

    Plastic Roll PE Film Blowing Machine For Garbage Bag , Blown Film Equipment


    Description:


    1Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.
    2Hence it is sound in hardness,durable in corrosion resistance.
    3The specially-designed screw is of sound quality in plasticizing,which helps increase the prodution capacity.
    4It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE) and linear low density polytene(LLDPE).
    5It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones.


    Technical Parameter:


    Model
    D50D55
    Diameter of Screw(mm)φ 50φ 55
    Max. Width of Folded Film (mm)100-600200-800
    Single-face Thickness of Film(mm)0.01-0.100.01-0.10
    Max. Extrusion(kg/h)3550
    L/D28: 128: 1
    Power of Main Motor(KW)7.5-1111-15
    Power of Traction Motor(KW)1.11.1
    Heating Power(KW)1113
    Overall Dimension (mm)3800× 1900× 30005500× 2100× 3500
    Weight(T)1.5T2T

    NOTE: Before send the inquiry , Please take minutes to read the following qustions :


    Machine name

    Specifications required

    Film blowing machine

    1. Max film width
    2. Which kind of materials? HDPE,LDPE,LLDPE,PP,PVE etc.
    3. Required output ?

    For other machines,please contact us for details.
