    High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-50*3/ 60*3
    Certification : CE, ISO9001
    Price : 30000-80000usd
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 30 sets one month
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    High speed Three Layers CPP Plastic Film Blowing Machine (SJ-50*3,60*3 Model)

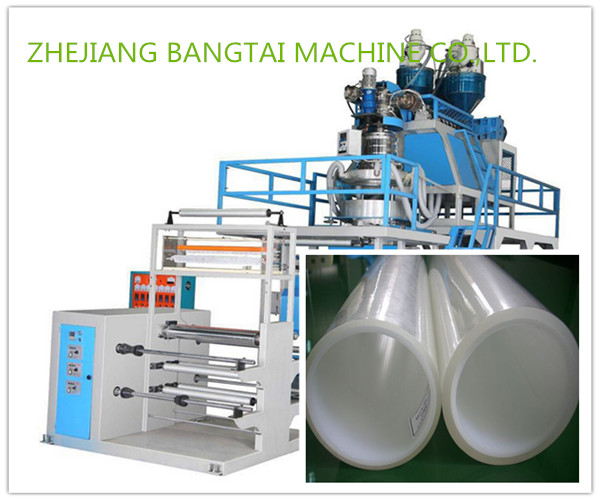

    Three Layers CPP Plastic Film Blowing Machine


    Specifications:


    Model

    SJ-60*3

    Screw Diameter

    60MM

    Screw Ratio

    L/D30:1

    Screw Speed

    10-100r/min

    Power of Main Motor

    18.5KW*3

    Power of traction main motor

    2.2kw

    Heating power(kw)

    45kw

    Main Output

    150kg/h

    Max.Folding Width of Film

    400-1200mm

    Single-sided Thickness of Film

    0.3-0.1mm

    Overall Dimensions

    7200x3200x5500mm



    Description:


    1. The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.
    2. die head can be turned in 360,it can strengthen the tension and evenness degree of film .
    3. screw and cylinder are all made of 38crmoal alloy, and treated by nitrogen. It has an advantage of great thickness, corrosion resistance and endurance.
    4. die head has been chromized, it’s advantage of screw core structure, melting material extruding evenly, and blowing film smoothing.
    5. cooling equipment is a labyrinth blow pump, which has good effect. Especially it adopts the recycling cooling water system to ensure the best transparent effect.
    6. discharging equipment adopts pressing braking winding equipment and central winding equipment, and it adopts torque motor to adjust, has the merits of smooth film, convenience operation.

    Optional parts:


    auto loader

    rotary die head

    double winders

    air shaft

    corona treatment


    Applications:


    The machine is suitable for producing PP. It is widely used for packing food, garment, textile, daily necessaries and industrial product.
