    PE Plastic Normal Blown Film Extrusion Machine For Shopping Bag Production

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-A
    Certification : CE , ISO9001
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 30 set / month
    Delivery Time : around 30 days
    • Product Details
    • Company Profile

    PE Plastic Normal Blown Film Extrusion Machine For Shopping Bag Production


    PE Plastic Normal Blown Film Extrusion Machine For Shopping Bag Production





    Description:

    it is the plastic blown film extrusion machine for blowing PE (polyethylene) film, like LDPE ,HDPE , LLDPE film etc.
    PE film is widely used for packing liquid ,industrial products ,garments and textile, for making plastic shopping bags, like T-shirt bag , flat bag , garbage bag etc.


    Technical Parameter:

    ModelSJ-50SJ-55SJ-60SJ-65SJ-75SJ-100
    Max folding width600mm800mm1000mm1200mm1500mm2000mm
    Main output25-35kg/h35-50kg/h55-65kg/h55-70kg/h80-120kg/h200kg
    Main motor power7.5-11kw11-15kw15-18.5kw18.5-22kw30-37kw55kw
    Screw diameter50mm55mm60mm65mm80mm100mm
    L/D ratio of screw28:128:128:128:128:128:1
    Speed of screw10-100r/min10-100r/min10-100r/min10-100r/min10-100r/min10-100r/min
    Film thickness0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm0.01-0.1mm
    Specification of die head60-120mm100-170mm100-170mm120-220mm150-300mm500mm
    Weight of machine2.2T2.5T3.6T4.2T6T7.5T
    Overall dimension4.5*1.8*3.5m5.5*2.0*3.8m6.0*2.2.4.2m6.0*2.4*4.37.0*2.7*5.88.0*3.2*8.2




    Optional equipment should extra the cost:

    1

    Mechanics-screen changer

    Easy and fast change filter, not need stop machine

    2

    Screw material change to bimetallic

    3

    CORONA TREATER

    Corona treater can change the exterior hydrophilicity of the plastic film and metal film,
    and strengthen the conglutination on the surface of material, easy for printing and coating.)

    4

    ROTARY HEAD

    With this device will make film thickness more even

    5

    Double winder

    If make two sheet film roll, this double winders with slitting knife to cutting in two rolls

    6

    UP AND DOWN

    Machine in top tower can up and down, when up machine will be high and cooling film time will be long

    7

    AUTO LOADER

    Automatic suck raw material to hopper and feeding in screw,
    easy to supply material to screw ,save more manpower

    8

    AIR SHAFT -2PCS
    (SINLE winder with 2pcs)

    The shaft with air, when expand the shaft loading paper core is tight ,
    with this air shaft easy to loading and unloading the roller

    9

    with pneumatic cylinder
    (on top tower and winder side.)
    With pneumatic cylinder
    (control the pressure roller and embossing roller)

    Top roller and embossing roller close and open with pneumatic cylinder control ,
    easy to operation and save manpower

    10

    Aluminum material figuration frame

    Compare normal wooden base figuration,
    this material quality good and can automatic control the cape bigger or small to adjust film width

    11

    ABB MOTOR

    Normal we use China brand motor, ABB motor from Germany ,quality and life will be better

    12

    INVERTER USE Taiwan DELTA brand

    Each machine with inverter to control or adjust the main machine speed,
    china brand is normal, DELTA brand from TAIWAN

    13

    Electric parts use Siemens Schneider etc.
    omron temperature

    Normal electric parts we use china brand

    14

    AUTOMATIC CUTTING
    AND CHANGE ROLLER (single winder)

    AUTOMATIC CUTTING AND CHANGE ROLLER, WITH PLC SYSTEM CONTROL.

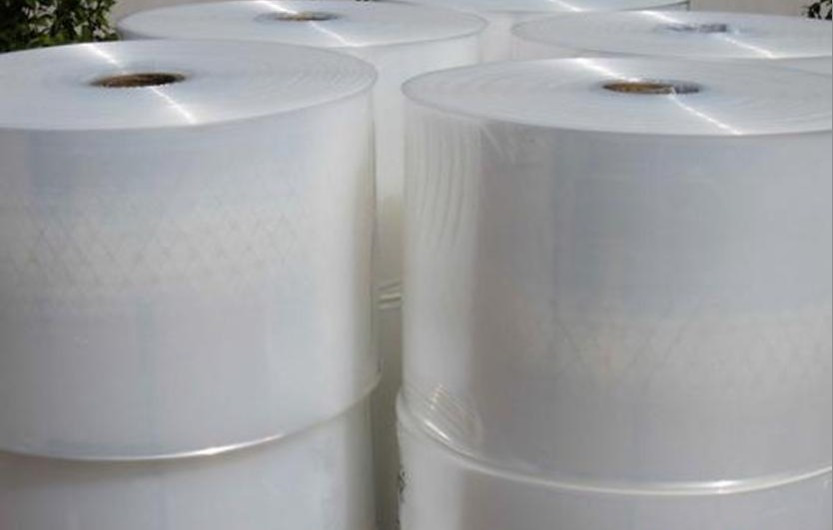

    Final product:





    Questions of Customer:


    Machine name

    Specifications required

    Film blowing machine

    1.Max Film Width

    2.Which kind of materials?
    HDPE,LDPE,LLDPE,PP,PVC,EVA,etc

    3.Required output ?
