    SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-D50
    Certification : CE , ISO9001
    Price : (6000USD - 9000 USD) / SET
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 30 Set/Month
    Delivery Time : around 30 work days
    • Product Details
    • Company Profile

    SJ-D50 Integrated Mini Type PE Blown Film Extrusion Machine Set

    film blowing machine , film extruder , film extrusion machine , blown film machine , blown film extrusion machine , film making machine , plastic film blowing machine


    SJ-D50 Integrated Mini TYPE PE Blown Film Extrusion Machine Set


    Description:
    SJ-D series Mini type film blowing machine is integrate all parts in one stage, it's easy to operate and save the space .
    This model Was so popular by customers in YIWU Fair 2014 .

    1Its extruder,cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way.
    2Hence it is sound in hardness,durable in corrosion resistance.
    3The specially-designed screw is of sound quality in plasticizing,which helps increase the prodution capacity.
    4It is applied to blowing the plastic films like low density polytene(LDPE),high density polytene(HDPE) and linear low density polytene(LLDPE).
    5It is widely applied to producing the packing bags for foodstuff,clothing,rubbish bag and vest ones.


    Technical Parameter:

    Model
    D50D55
    Diameter of Screw(mm)φ 50φ 55
    Max. Width of Folded Film (mm)100-600200-800
    Single-face Thickness of Film(mm)0.01-0.100.01-0.10
    Max. Extrusion(kg/h)3550
    L/D28: 128: 1
    Power of Main Motor(KW)7.5-1111-15
    Power of Traction Motor(KW)1.11.1
    Heating Power(KW)1113
    Overall Dimension (mm)3800× 1900× 30005500× 2100× 3500
    Weight(T)1.5T2T

    1

    Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated

    2

    Fixed die device with standard air ring

    3

    Gear box: water cooling reducer, hard tooth surface #133

    4

    Single winder with air shaft 2 pcs

    5

    counter of metric

    6

    Main motor : CHINA brand motor With inverter control

    7

    Heating ring : aluminum casting

    8

    winder motor : torque motor

    9

    Embossing roller

    10

    Gusset device

    11

    UP and down device

    12

    Power supply 3phase 380v 50hz

    13

    Punmatic cylinder for controller top roller

    14

    With auto loader

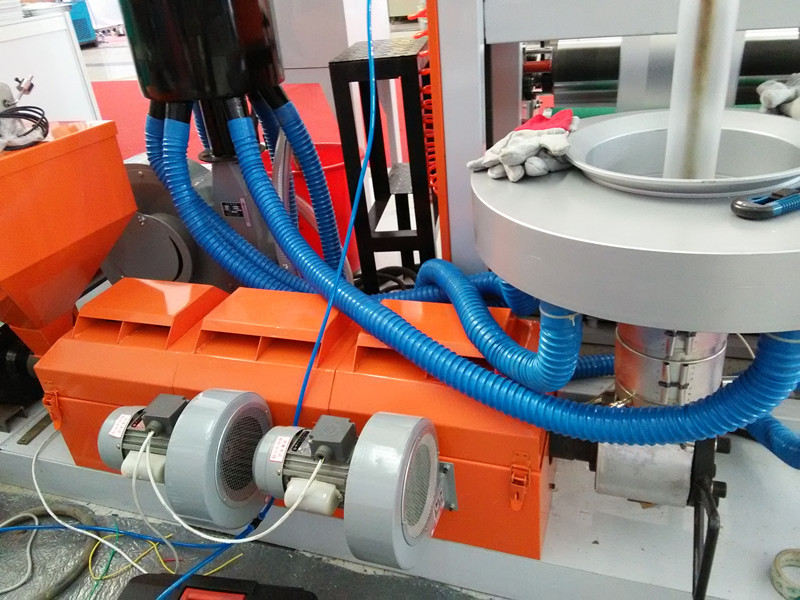

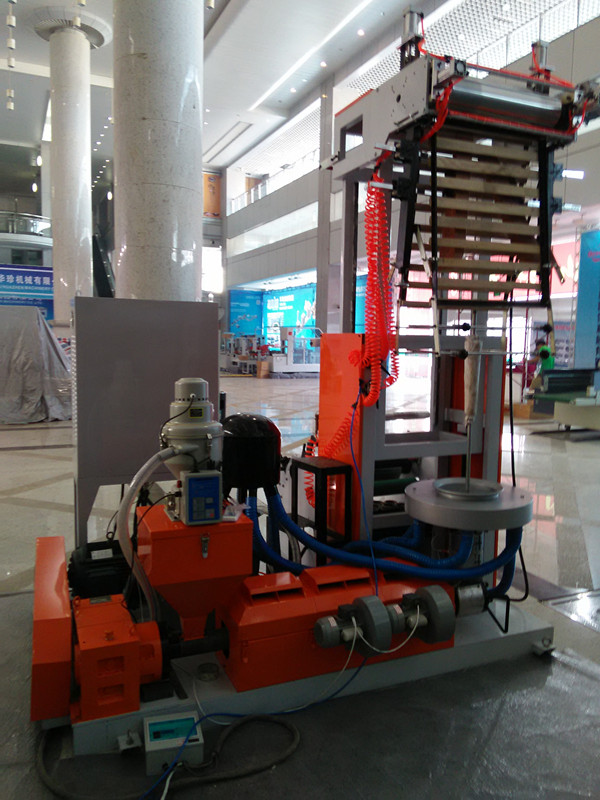

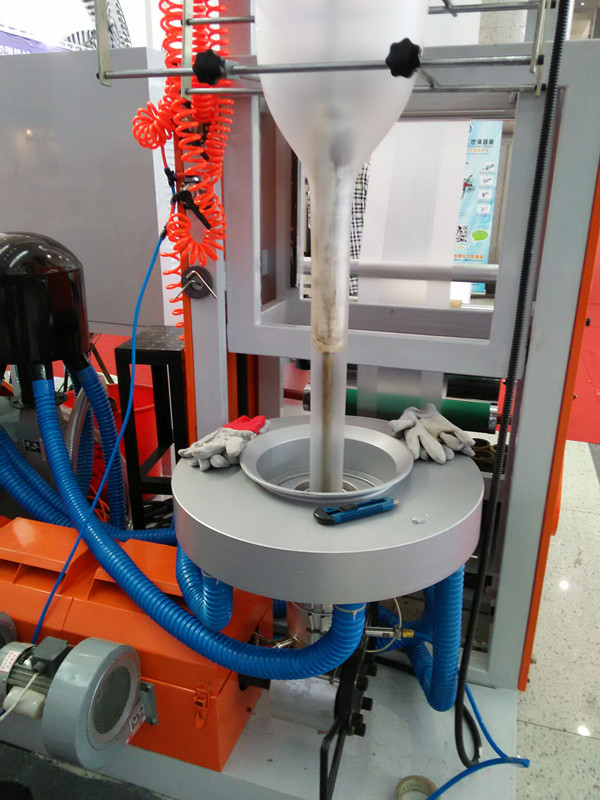

    Picture Description:






    NOTE: Before send the inquiry , Please take minutes to read the following qustions :

    Machine name

    Specifications required

    Film blowing machine

    a.Max film width

    b.Which kind of materials? HDPE,LDPE,LLDPE,PP,PVE etc.

    c.Required output ?


    For other machines,please contact us for details.
