PE Plastic Film Blowing Machine For Bag Production ( with CE )

    Buy cheap PE Plastic Film Blowing Machine For Bag Production ( with CE ) from wholesalers

    Buy cheap PE Plastic Film Blowing Machine For Bag Production ( with CE ) from wholesalers
    • Buy cheap PE Plastic Film Blowing Machine For Bag Production ( with CE ) from wholesalers

    PE Plastic Film Blowing Machine For Bag Production ( with CE )

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : SJ-A50/55
    Certification : CE , ISO9001:2000,SGS
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 40 set / month
    Delivery Time : 20 working days
    Price : 6,000-15,000 USD/SET
    • Product Details
    • Company Profile

    PE Plastic Film Blowing Machine For Bag Production ( with CE )

    PE Plastic Film Blowing Machine For Bag Production ( with CE )




    Spec:


    Model

    SJ-A50

    SJ-A55

    Max.layflat width

    600mm

    800mm

    Max extrusion

    35kg/h

    50kg/h

    Main motor

    11kw

    15kw

    Screw diameter

    50mm

    55mm

    L/D ratio of screw

    28:1

    28:1

    Speed of screw

    10-100r/min

    10-100r/min

    Film thickness

    0.01-0.08mm

    0.01-0.08mm

    Specification of die head

    60mm,120mm

    80mm,150mm

    Weight of machine

    1.8T

    2.2T

    Overall dimension

    5.0*1.6*3.8m

    5.6*2.2*4.7m


    Description:

    It is used for blowing PE (polyethylene) film, like LDPE ,HDPE , LLDPE film etc.
    PE film is widely used for packing liquid ,industrial products ,garments and textile, for making plastic shopping bags, like T-shirt bag , flat bag , garbage bag etc.



    Optional equipment should extra the cost:


    1

    Hydraulic filter changer

    Easy and fast change filter, not need stop machine

    2

    Screw material change to bimetallic

    3

    CORONA TREATER

    Corona treater can change the exterior hydrophilicity of the plastic film and metal film,
    and strengthen the conglutination on the surface of material, easy for printing and coating.)

    4

    ROTARY HEAD

    With this device will make film thickness more even

    5

    Double winder

    If make two sheet film roll, this double winders with slitting knife to cutting in two rolls

    6

    UP AND DOWN

    Machine in top tower can up and down, when up machine will be high and cooling film time will be long

    7

    AUTO LOADER

    Automatic suck raw material to hopper and feeding in screw,
    easy to supply material to screw ,save more manpower

    8

    AIR SHAFT -2PCS
    (SINLE winder with 2pcs)

    The shaft with air, when expand the shaft loading paper core is tight ,
    with this air shaft easy to loading and unloading the roller

    9

    with pneumatic cylinder
    (on top tower and winder side.)
    With pneumatic cylinder
    (control the pressure roller and embossing roller)

    Top roller and embossing roller close and open with pneumatic cylinder control ,
    easy to operation and save manpower

    10

    Aluminum material figuration frame

    Compare normal wooden base figuration,
    this material quality good and can automatic control the cape bigger or small to adjust film width

    11

    ABB MOTOR

    Normal we use China brand motor, ABB motor from Germany ,quality and life will be better

    12

    INVERTER USE Taiwan DELTA brand

    Each machine with inverter to control or adjust the main machine speed,
    china brand is normal, DELTA brand from TAIWAN

    13

    Electric parts use Siemens Schneider etc.
    omron temperature

    Normal electric parts we use china brand

    14

    AUTOMATIC CUTTING
    AND CHANGE ROLLER (single winder)

    AUTOMATIC CUTTING AND CHANGE ROLLER, WITH PLC SYSTEM CONTROL.

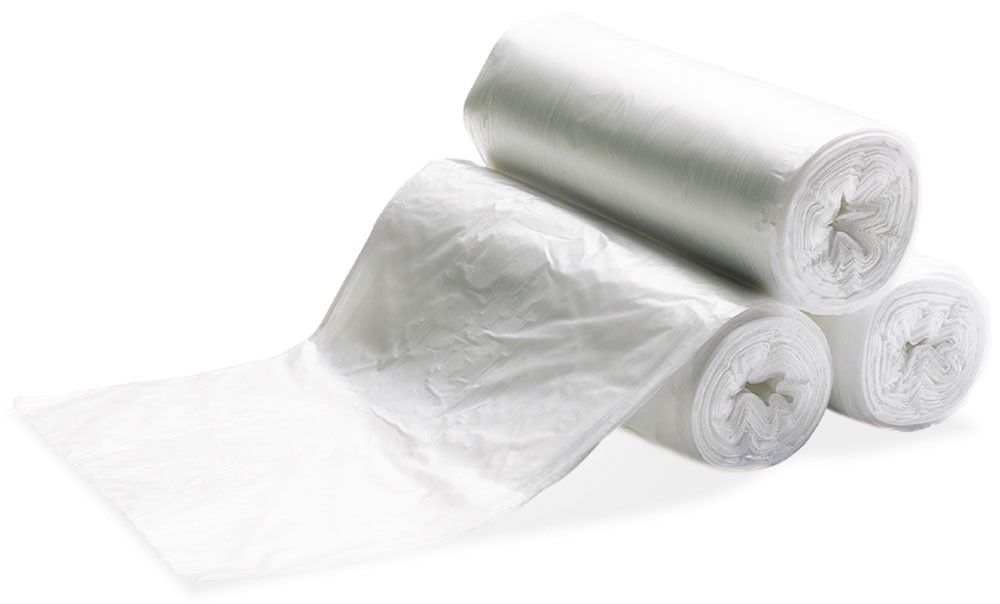

    Final product:







    Questions of Customer:



    Machine name

    Specifications required

    Film blowing machine

    1.Max Film Width

    2.Which kind of materials?
    HDPE,LDPE,LLDPE,PP,PVC,EVA,etc

    3.Required output ?

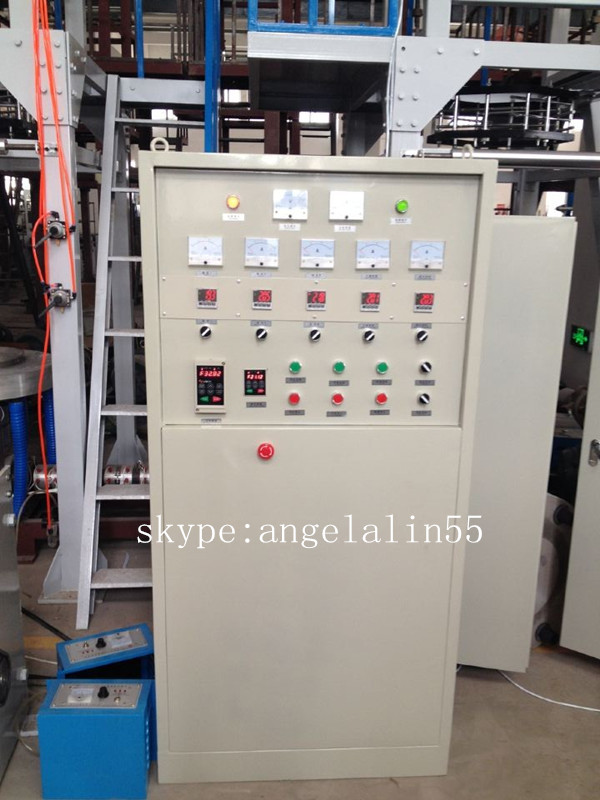

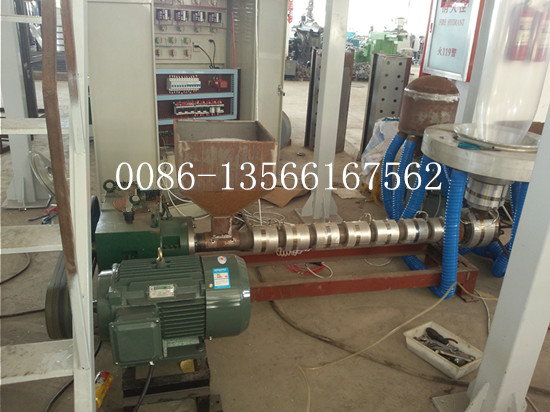

    Machine Picture:
