Brand Name : | SANBI |
Model Number : | SJ-50 |
Certification : | CE ISO9001 |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 30 sets/ month |
Delivery Time : | around 30 work days |
film blowing machine, film extruder, pe film blowing machine, plastic blown film extrusion machine , film blow mould extrusion machin
Single Layer Plastic Film Blowing Machine / High Speed Film Blowing Machine
1.Main technical variables
Model | SJ-55 | SJ-60 | SJ-65 |
Diameter of Screw | φ55 | Φ60 | Φ65 |
Max. Width of Folded Film | 200-800 | 300-1000 | 300-1200 |
Single-face Thickness of Film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max. Extrusion(kg/h) | 75kgs/h | 100kgs/h | 120kgs/h |
L/D | 30:1 | 30:1 | 30:1 |
Die head size | Φ80, φ150 | Φ120, φ200 | Φ150, φ250 |
Power of Main Motor(kw) | 22 | 37 | 37 |
Power of Traction Motor(kw) | 1.5 | 1.5 | 1.5 |
Max.line speed(m/min) | 100 | 100 | 100 |
Overall Dimension (L x W x H) | 6500×2200×4700 | 7000×2300×5250 | 7300×2600×5800 |
Weight(T) | 2.5T | 3.5T | 3.5T |
1 | Barrel and screw material: BIMETALIC Screw and 38CrMoAl barrel |
2 | Die HEAD : fixed die head with double vent air ring |
3 | Gear box: water cooling reducer, hard tooth surface |
4 | AIR BLOWER :5.5KW(Detal inverter control) |
5 | single winder : automatic rewinding and automatic changer roll ,control by PLC ,with two air shaft |
6 | counter of metric |
7 | Main motor : China motor With inverter control (China BRAND) |
8 | Heating ring : casting -AL material |
9 | with pneumatic cylinder on top tower and winder side |
10 | Line speed :100m/min |
11 | With Embossing roller |
12 | With Gusset device |
13 | Bubble fixer :Aluminium material figuration frame |
14 | Other low-pressure electrical part : China brand |
15 | Power supply: 380V,3 phase, 50 HZ/Cycles. |
16 | UP and down device: inner type up and down, . 1pc |
2. optional equipments should extra cost
1 | CORONA TREATER |
2 | Rotary die head . |
3 | Mechanics-screen changer |
4 | Auto loader |
3.Description:

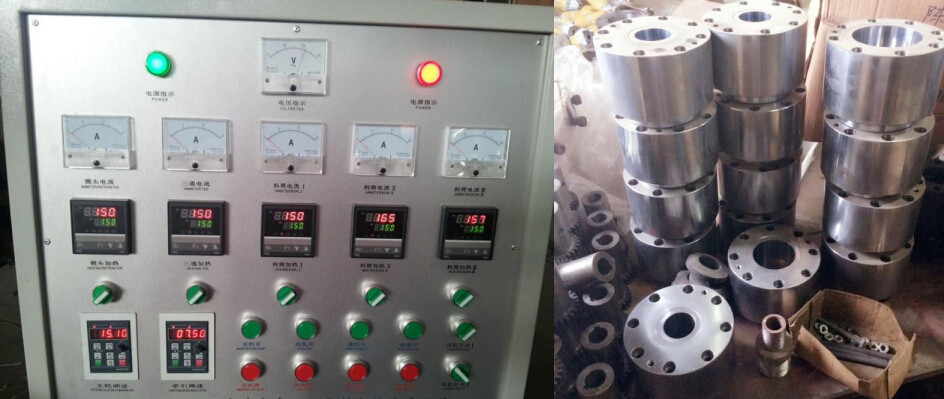

Electric box & Die head

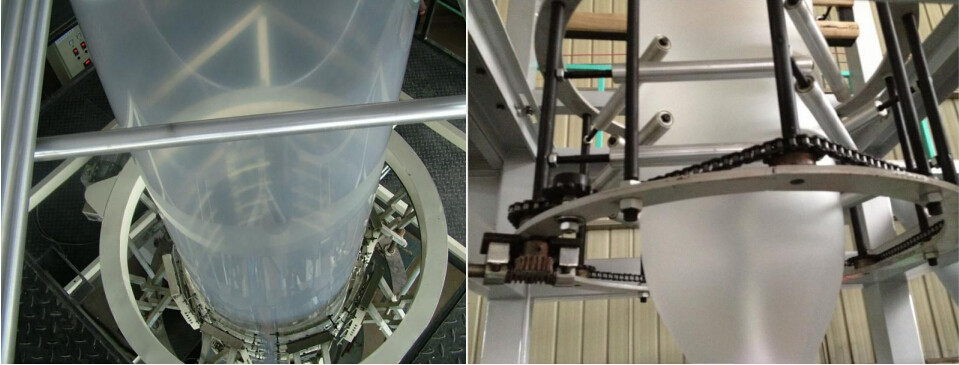

Shaped circle & film blowing

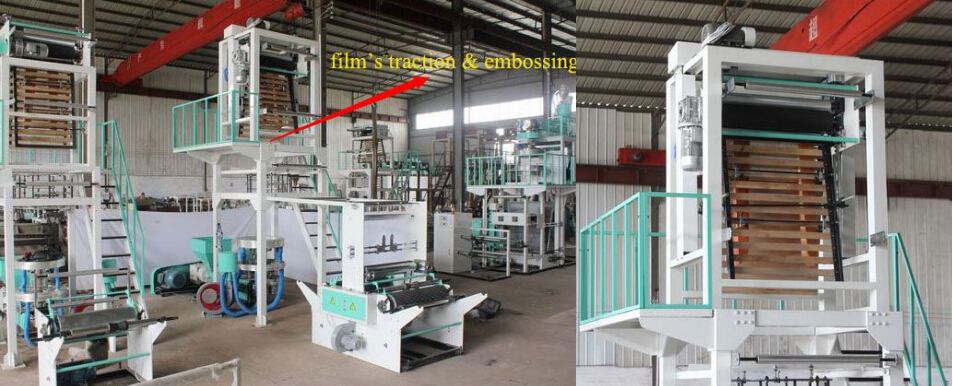

Traction of film & embossing parts
Finished film rolling-up
![]() |
