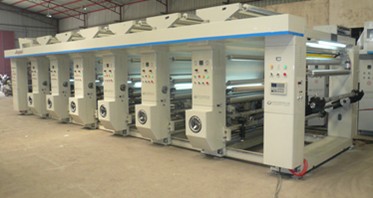

DFASY-61000 6 Colors computer printing machine for plastic film (CE)

Quick Detail:

- Computer controlled rotogravure printing machine

- High speed 120m/min

1.ai Main parameter:

1. Printing colors: 6 color 8 groups

2. Max.width of printing material: 1030mm

3. Max. Printing width: 1000mm

4. Max. Mechanical speed: 120m/min.

5. Max. Printing speed:10-100m/min(varies according to the different printing

ink and the familiarity of the operator.etc).

6. The Max diameter of unwind and rewind: 600mm.

7. Diameter of printing cylinder: 100mm-320mm.

8. Precision of overprint: longitudinal register≤±0.15mm

Horizontal register≤±0.15mm

9. Diameter of web: 76mm (inner)*92mm (outer).

10. Main motor: frequency conversion motor 7.5KW

11. Machine power: 56kw

12. Overall dimension: 9500×2800×2520mm

13. Net weight: 11T

14. Printing material:

Non-woven

Cellophane: 20-30μm

PET: 12-60μm

PE: 40-80μm

OPP: 15-60 μm

BOPP: 15-60 μm

CPP: 15-60 μm

PVC:20-80μm

NY: 15-50μm

PAPER: 30-80gsm

Composite film: 15-60μm

And other film materials with the similar printing performance listed above.

Competitive Advantage:

A .The twenty-seven years experence to manufacture this machine

B. 30years professional engineers service in many countries,

C. Machines with quality guarantee for one year, life-long maintenance.

D. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

E. Professional development group continuously improves and upgrades new products and new technologies .

F. Undertake various non-standard machinery, solve the customers' special requirements.

BRIEF OF INTRODUCTION

Zhejiang Bangtai Machine Co., Ltd (the original “Ruian Dongfeng Machine Industrial Co.,Ltd” ) was founded in 1987. Now we has recognized as National High-tech enterprises, The National Torch-planning Project commitment to corporate and gaine eight national patents after our twenty-four years efforts.
With the purpose of "Technology innovation make the enterprises take-off," we follow scientific management system in every proceeding, internalization, elaboration, reasonable etc. Each machine should after strict testing before its delivery.

Our Enterprises authorized the ISO9001, 2008 quality management system certification, and product passed the European CE certification. Equipments has sold to all cities of domestic and exported to the United States, Russia, Malaysia, Saudi Arabia, South Africa, Europe, America, Southeast Asia, Africa, the Middle East and other countries and regions.
The company’s professional development group attaches great importance to search new products , new technologies enhance .The series of clothing bag making machine, automatic color ball lantern machine this two production won the high-tech products in Zhejiang Province; Multifunctional non-woven bag making machine, Mini integral type film blowing machine, High speed flexographic printing machine , full automatic high speed double lines t-shirt bag making machine etc. seven products named provincial new products; Our registered Brand" SANBI" (shows our efforts in Good Quality, Good Service and Good Price) has been honored into Wenzhou city famous trademark ; plastic bag making machine has been identified into Wenzhou city Famous Brand; Automatic color ball lantern machine has been recognized into Ruian city Prize for Progress in Science and Technology .

Thank you for hand in hand, walk together with you in the way, we will continue to adhere the purpose of "Customer service, mutual benefit and win-win," we will sincerely do our best to offer best price with best quality and services and to satisfy the individuated demands for you .Hope our cooperation will be long term as well as the friendship.
