    2 Color 600 / 800 / 1000 Mm Flexographic Printing Machine 50m/Min

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : YT
    Certification : CE, ISO9001
    Price : usd 7000-10000 one set
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 30 sets one month
    Delivery Time : within 30days
    • Product Details
    • Company Profile

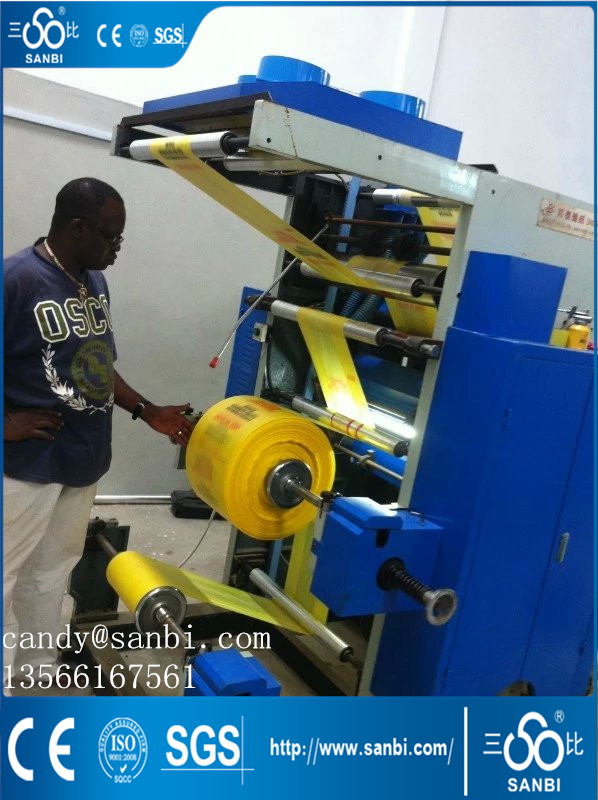

    2 Color 600 / 800 / 1000 Mm Flexographic Printing Machine 50m/Min

    YT-2600 Two-Color Flexographic Printing Machine


    Product Description
    Application: Introduce sensitization resin as flexible printing plate, suitable for printing
    Such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
    etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
    Supermarket handbag, vest bag and clothes bag, etc.

    Performance and Features:
    1. Easy operation, flexible starting, accurate color register.
    2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
    3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
    4. The printing ink is spread by the anilox cylinder with even ink color.
    5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
    6.360 continuous and adjustable longitudinal register device.
    7. The frequency control of motor speed adapts to different printing speeds.
    8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.


    Main Technical Parameter:

    Model

    YT-2600

    Max. Width of Printing Material(mm)

    600

    Max. Printing Width(mm)

    560

    Length Range of Printed Product(mm)

    191-914

    Max. Diameter of Roll Material(mm)

    Φ450

    Printing Speed(m/min)

    5~50

    Thickness of plate(Including Two-sides Glue Paper)(mm)

    2.38

    Total Power

    8

    Weight(kg)

    2500

    Overall Dimension(mm)

    2300*1600*2200


    Optional Device:

    1. Unwind and Rewind use automatic tension control: 1000USD*2=2000USD

    2. Unwind with automatic deviation correction system(EPC):1100USD

    3. Cylinder can stand up with plate: 200USD*2color=400USD

    4. Our machine had equipped 40cm roller for you. If you need another roller for printing, need 2.0USD/CM.


    SPARE PARTS

    01


    inner hexagonal spanner


    1set

    02


    Cross screwdriver


    1pc

    03


    a-liner screwdriver


    1pc

    04


    Screws


    15pcs

    05



    Scissors


    1pc

    06


    operation instruction book


    1pc
