Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001

    Buy cheap Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001 from wholesalers

    Buy cheap Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001 from wholesalers
    • Buy cheap Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001 from wholesalers

    Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001

    Ask Lasest Price
    Brand Name : SANBI
    Model Number : HYT-6600-62000
    Certification : CE,ISO9001:2000,SGS
    Delivery Time : 20-30 workingdays
    Payment Terms : T/T. L/C. WESTER UNION etc.
    Supply Ability : 20sets per month
    • Product Details
    • Company Profile

    Label Flexo Printing press Multicolor Flexographic Printer With CE ISO9001


    6 colors high speed Flexographic Printing Machine CE / ISO9001

    Quick Detail:

    Type:

    Flexographic Printer

    Condition:

    · New

    Plate Type:

    · flexographic

    Place of Origin:

    Zhejiang, China (Mainland)

    Brand Name:

    · SANBI

    Model Number:

    HYT-6600-62000

    Usage:

    Paper Printer, Label Printer, Card Printer, Cloths Printer

    Automatic Grade:

    Automatic

    Color & Page:

    Multicolor

    Voltage:

    · 380V

    Gross Power:

    · 50KW

    Dimensions(L*W*H):

    8800*1800*2000mm

    Weight:

    · Printing Machine

    Certification:

    ISO 9000 ,CE

    After-sales Service Provided:

    Engineers available to service machinery overseas

    type:

    · Flexographic Printing Machine

    feature:

    · ceramic anilox roller ,single doctor blade


    Product Description


    High Speed 6Colors Flexographic Printing Machine (CE) (HRT-6600-61600
    Preponderant:
    -Hydraulic lift control printing roller
    -Ceramic Anilox roller (Japan brand) 6PCS
    -double face Closed type doctor blades (Switzerland Brand) 6PCS
    -Two-way diaphragm pumps6PCS
    -Automatic tension controller (Taiwan Brand)
    -Automatic EPC device (Edge position controller)
    -27inch Static screen (Inspecting pictures)
    -High speed 100-150m/min
    Characteristics:
    1. Major configuration
    1. Low speed and full load startup; Stable running by tension control when increasing and decreasing speed, noise is decreased
    2. High dots presentation rate under high speed; Clear and vivid stratification of screen printing; Strong stereo effect and accurate registering.
    3. Aluminum roller adopts the Japan semi-sealing small bearing; Flinty oxidation, static and dynamic balancing treatments are conducted; Low resistance and small flop.
    4. The special made modulus angular gears adopted; Accurate printing size and full printing specifications (5mm is a spec)
    5. With the air exhaust, blowing and heating settings; The heating system adopts the central thermostatic control system and group management, also with the cold air forming devices.
    6. Printing rolls should keep moving while machine halted
    7. Material holder use air shaft
    8. Autotension control
    9. Unwind with auto deviation correction system (EPC)
    10. EDGE position control
    11. Reversible printing 6 color press for6+0, 1+5, 2+4, 3+3.
    12.1 sets of printing cylinder, sizes: 15 inches.

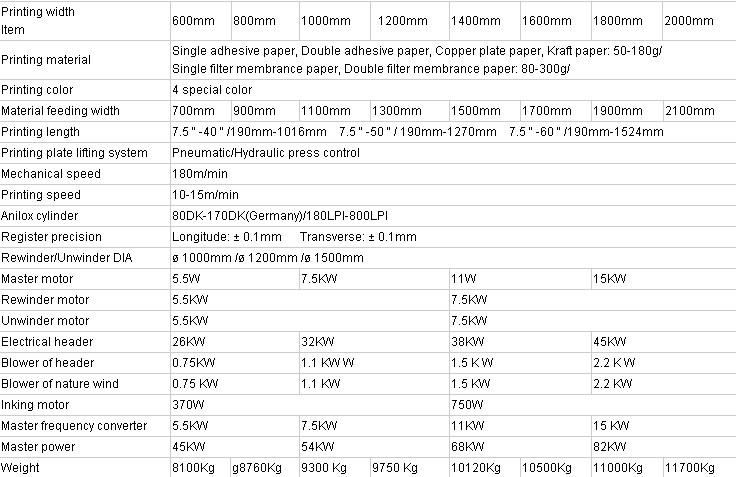

    Specification


    Product Display :



    PRODUCTS WORKSHOP :

    1. Safety first, quality first .

    2. Strict and advanced workshop management system .

    3. The human production, people-oriented .

    4. High quality products to provide high quality environment .
