Double Winder Blowning Film Extrusion Machine / extrusion blowing machine
Description:
1.Blown film extrusion machine is used for blowing the various plastic film of low density polyethylene (LDPE), high density polythylene(HDPE) and linear low density polyethylene(LLDPE) etc. Which are widely used for packing liquid industrial products garment and textile, etc.
2.Rotary Die Head can help the film blowing more smoothly.
3.Double winder used for winding two roll of single face film.
OPTIONAL EQUIPMENT:
1)AUTO LOADER
2)FILM SURFACE TREATER
3)HIGH SPEED NET CHANGER
4)AUTO WINDER
5)DOUBLE - LIP AIR RING
Main Technical Parameter:
Model | SJ-B50 | SJ-B55 | SJ-B65 | SJ-B70 |
Diameter of screw | φ50 | φ55 | φ65 | φ70 |
Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Power of main moto(kw) | 11 | 15 | 22 | 30 |
Power of Traction moto(kw) | 1.5 | 1.5 | 1.5 | 1.5 |
Heating Power(kw) | 11 | 15 | 20 | 20 |
Outline diameter(L x W x H) (mm) | 6200 x 2000 x 3800 | 6800 x 2200 x 4700 | 7200 x 2400 x 5200 | 7400 x 2600 x 5200 |
Weight(T) | 2.5T | 2.9T | 3.4T | 3.5T |
Competitive Advantage
a. The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long
maintenance.
d. Created honors : The national igh tech-Enterprises, The national
torch-planning project commitments to corporate. Famouse trademarks
in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and
upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers'
special requirements.

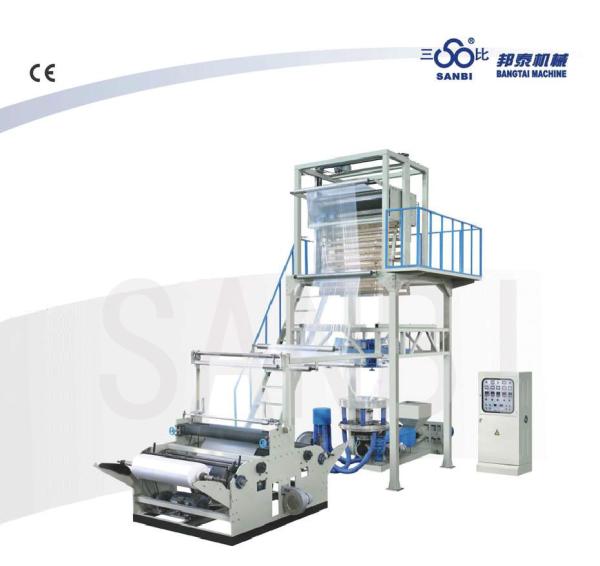

Picture:
![]() |
