    PE Plastic Film Film Blowing Machine , polyethylene blown film extruder

    Ask Lasest Price
    Brand Name : SANBI
    Certification : CE, ISO9001:2000,SGS
    Model Number : SJ-A50/55/65
    Price : USD6,000 TO USD18,000
    Delivery Time : within 15 working days
    Payment Terms : T/T, L/C, D/A
    Supply Ability : 40 sets /month
    • Product Details
    • Company Profile

    PE Plastic Film Film Blowing Machine , polyethylene blown film extruder

    PE Plastic Film Film Blowing Machine , Polyethylene Blown Film Extruder


    Spec:


    Model

    SJ-A50

    SJ-A55

    SJ-A65

    SJ-A65-1

    Diameter of screw

    φ50

    φ55

    φ65

    φ65

    Lay-flat width of film(mm)

    100-600

    200-800

    300-1000

    400-1200

    Thickness of film(mm)

    0.01-0.10

    0.01-0.10

    0.01-0.10

    0.01-0.10

    Max. output(kg/h)

    35

    50

    65

    80

    L/D ratio of screw

    28:1

    28:1

    28:1

    28:1

    Power of main motor(kw)

    11

    15

    22

    22

    Power of Traction motor(kw)

    1.5

    1.5

    1.5

    1.5

    Heating Power(kw)

    10

    15

    20

    20

    Overall dimension(L*W*H) (m)

    4.8*1.9*3.8

    5.5*2.1*4.6

    6.5*2.3*5.2

    6.500*2.5*5.2

    Weight(T)

    1.5

    2

    2.3

    2.6



    Standard Configure


    9Barrel and screw material: 38 chrome-molybdenum aluminum , nitrogen treated
    10FIXED DIE HEAD DEVICE
    11Gear box: water cooling reducer, hard tooth surface
    13Single winder
    14counter of metric
    15Main motor : CHINESE BRAND ,WITH CHINESE INVERTER
    16Heating ring : cast aluminum
    18Air compressor
    19winder motor : torque motor
    20Embossing roller
    21Gusset device
    223PASE 380V 50HZ

    Use:

    This screw and barrel is made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polytene (LDPE), high density polytene(HDPE) and linear low density polytene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.


    Competitive Advantage:


    a. The twenty-seven years experence to manufacture this machine

    b. 30years professional engineers service in many countries,

    c. Machines with quality guarantee for one year, life-long maintenance.

    d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc

    e. Professional development group continuously improves and upgrades new products and new technologies .

    f. Undertake various non-standard machinery, solve the customers' special requirements.


    Picture:

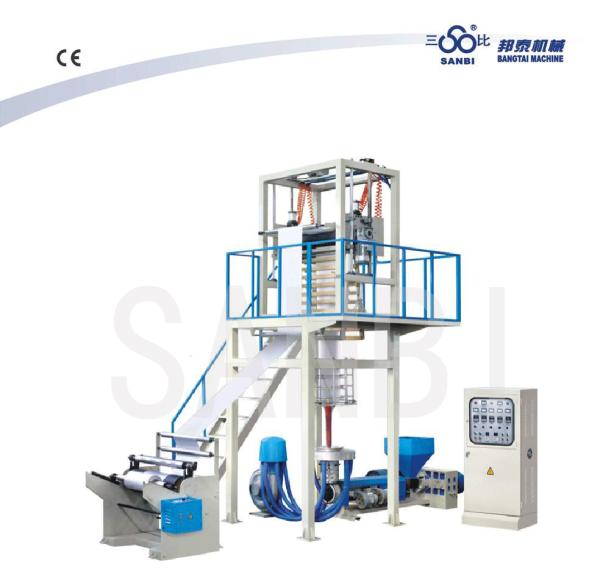

    Quality PE Plastic Film Film Blowing Machine , polyethylene blown film extruder for sale
